Cleaning and repair information. Click an image for large, then right-click and "Open in new tab" and open that tab for zoomable large. Click on image for (+) (-)
See how to clean diskette drive heads: (http://internationalschoolphotos.com/IBM_DisketteDriveHeadClean/index.html)
Logic PC Board layout.

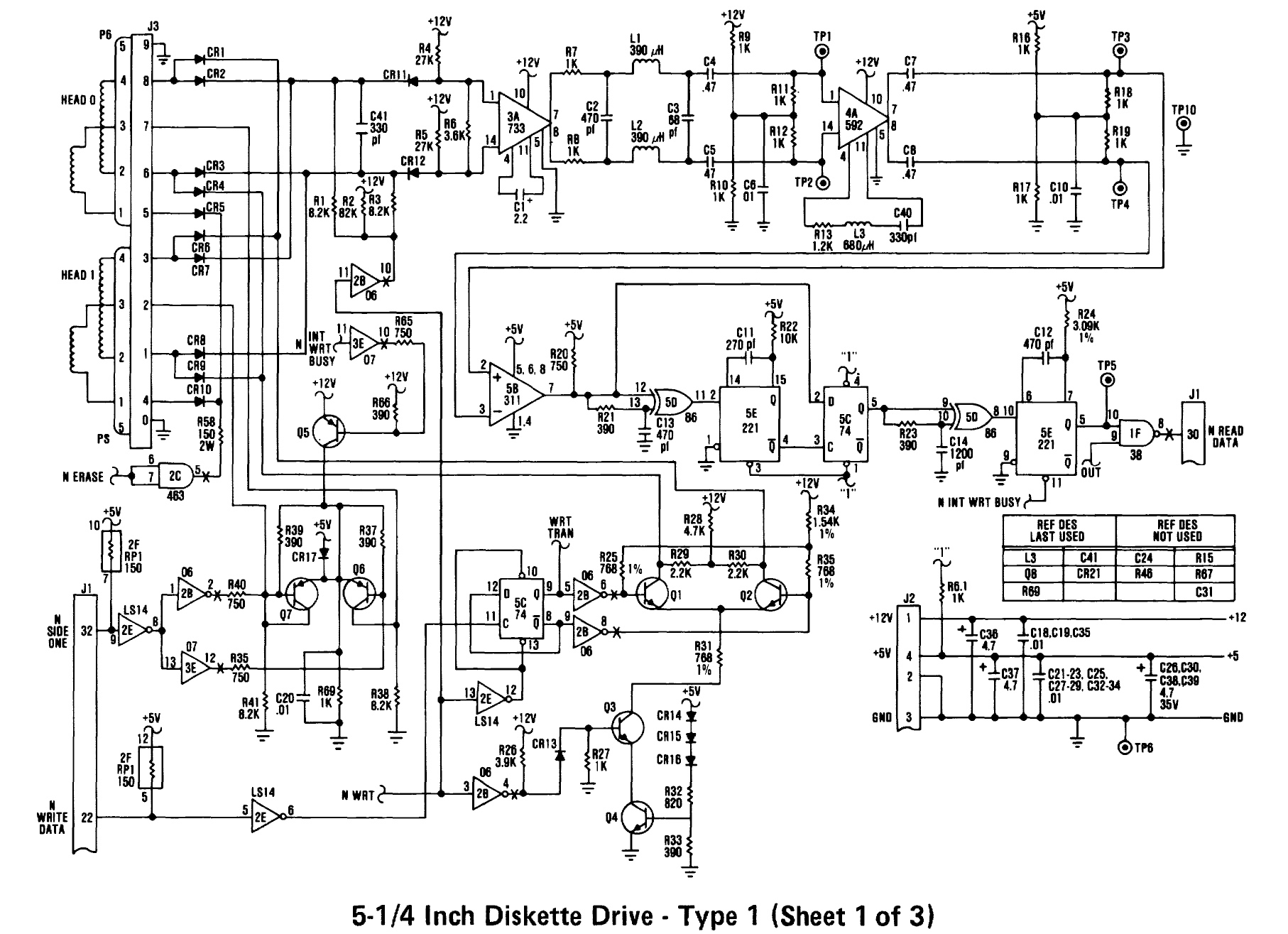

Tandon-TM200-2A- LogicBoardPage1

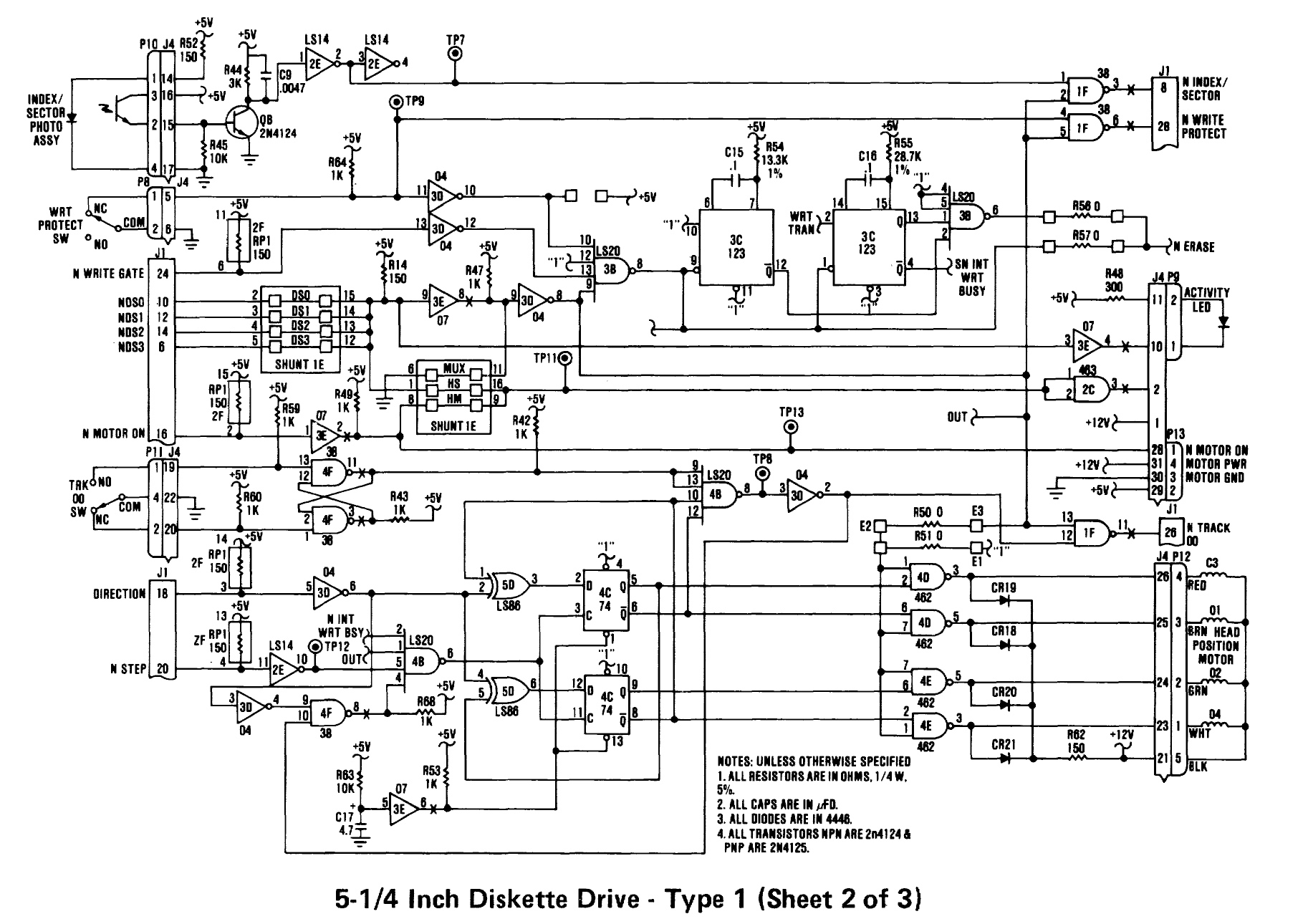

Tandon-TM200-2A- LogicBoardPage2
Motor Driver Board Layout.

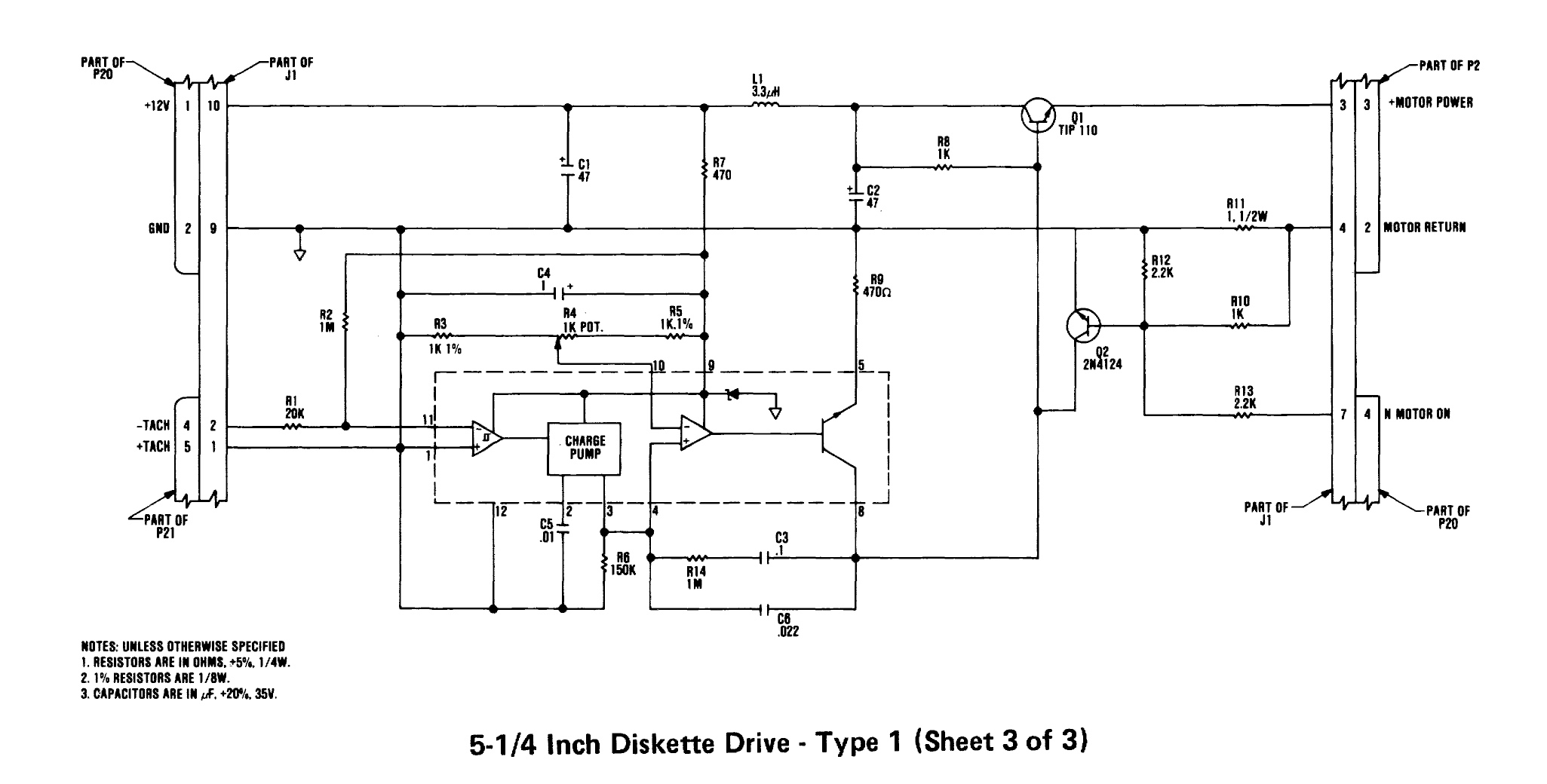

Tandon-TM200-2A- Motor Servo Drive

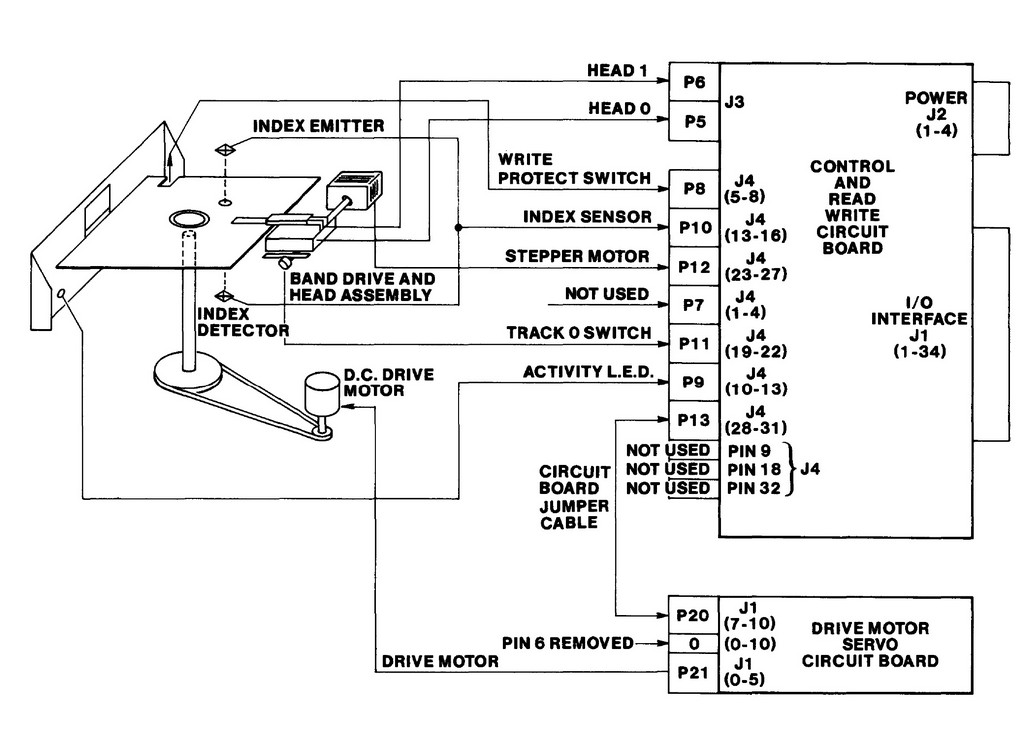

BLOCK DIAGRAM
Connections and test points

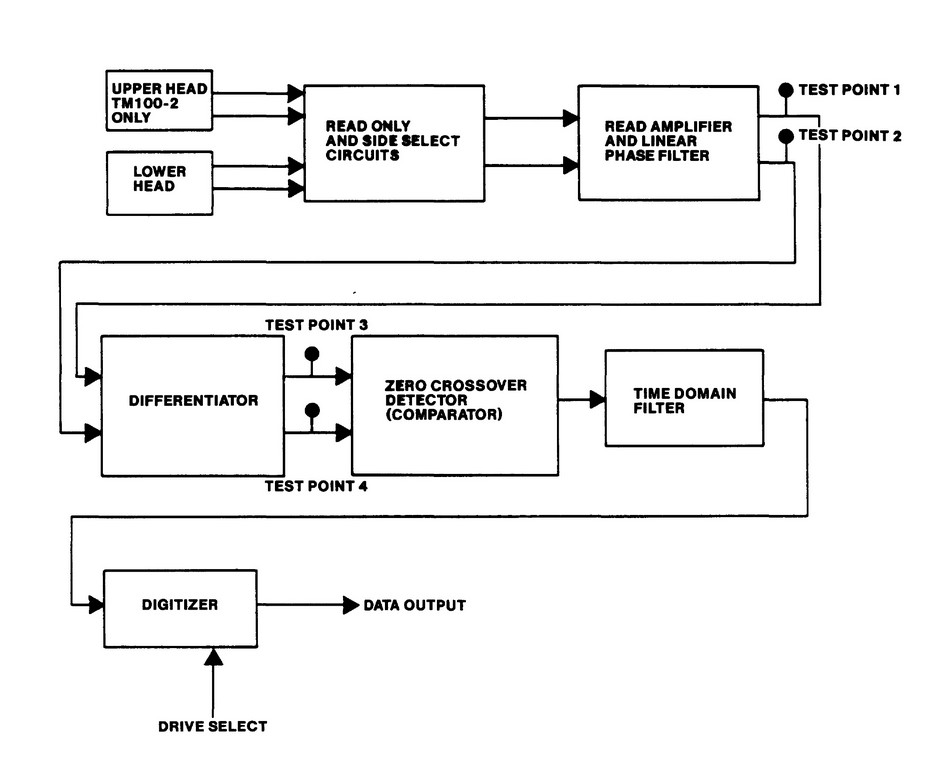

Read head electronics
Share album

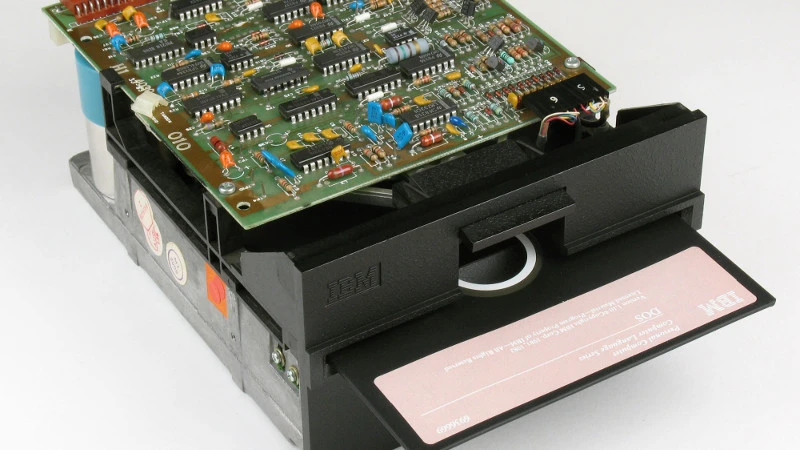

IBM Diskette Drive TANDON TM200-2A
